Each of our steel sheds and garages are available in a range of colours and sizes. Sizes are shown within our online shop as nominal - for the exact dimensions, please refer to the list below or the individual product page. Sizes are normally shown for the external measurement of the shed. An additional 75mm must be allowed for on each side for the roof overhang.
Apex Steel Shed Sizes
Our Apex shed model is available in a choice of 4 widths and 6 depths.
Apex Shed Exterior Widths:
- 6ft (nominal) - 1.90m/6'3"
- 8ft (nominal) - 2.50m/8'2¬Ω"
- 10ft (nominal) - 3.10m/10'2"
- 12ft (nominal) - 3.70m/12'1"
Apex Shed Exterior Depths
- 7ft (nominal) - 2.10m/6'10¬Ω"
- 10ft (nominal) - 3.10m/10'2"
- 13ft (nominal) - 4.10m/13'5¬Ω"
- 16ft (nominal) - 5.10m/16'9"
- 20ft (nominal) - 6.10m/20'
- 23ft (nominal) - 7.10m/23'3¬Ω"
Pent Steel Shed Sizes
Our Pent shed model is available in a choice of 4 widths and 4 depths.
Pent Shed Exterior Widths:
- 6ft (nominal) - 1.90m/6'3"
- 8ft (nominal) - 2.50m/8'2¬Ω"
- 10ft (nominal) - 3.10m/10'2"
Pent Shed Exterior Depths
- 7ft (nominal) - 2.10m/6'10¬Ω"
- 10ft (nominal) - 3.10m/10'2"
- 13ft (nominal) - 4.10m/13'5¬Ω"
- 16ft (nominal) - 5.10m/16'9
Garage Sizes
Our Garage model is available in a choice of 2 widths and 4 depths.
Garage Exterior Widths:
- 13ft (nominal) - 3.96m/13'
- 15ft (nominal) - 4.56m/15'
Garage Exterior Depths
- 13ft (nominal) - 4.10m/13'5¬Ω"
- 16ft (nominal) - 5.10m/16'9"
- 20ft (nominal) - 6.10m/20'
- 23ft (nominal) - 7.10m/23'3¬Ω"
Colour Choices
Each of our buildings are available in a choice of 5 colour finishes.

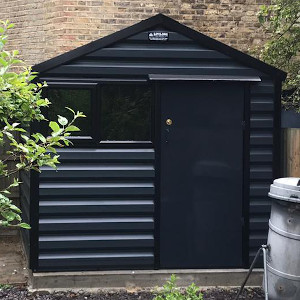

Anthracite Steel Sheds

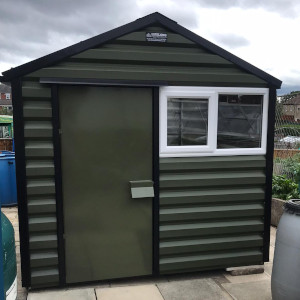

Olive Green Steel Sheds

Goosewing Grey Steel Sheds

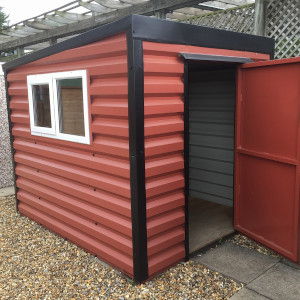

Terracotta Steel Sheds

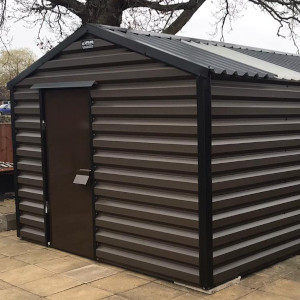

Vandyke Brown Steel Sheds
